遠心バレル研磨機【CFB型】

UJIDEN PRODUCTS

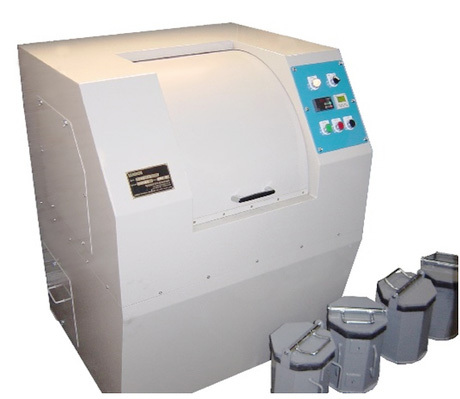

CFB-4V型

CFB-4V型

CFB-30型

CFB-30型

CFB-120型

CFB-120型

CFB-20-32型

CFB-20-32型

特徴

コンパクト設計により場所を取りません。
ポット内のライニング交換により湿・乾式研磨に対応します。
作業性・操作性抜群で多品種・少量生産に最適です。
粗研磨~鏡面研磨まで可能です。

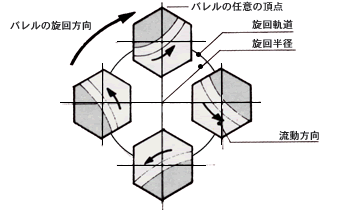

バレル概要

主要諸元

形式 容量(L) モーター(kw) 回転数(rpm) 機械寸法(mm) 重量(kg)
CFB-4V
1Lx4槽(脱着式) 1.5 0-400
680x600x990
150
CFB-8 2Lx4槽(脱着式) 2.2 0-200 860x860x1,170 250
CFB-20 5Lx4槽(脱着式) 2.2 0-200 910x860x1,170 500
CFB-20-32 0.4Lx8室/槽x4槽(脱着式) 2.2 0-400 1,020x800x1,020 500
CFB-30 6Lx4槽(脱着式) 2.2 0-200 910x860x1,170 500
CFB-40 10Lx4槽 3.7 0-130 1,350x1,140x1,430 900
CFB-60 15Lx4槽 3.7 0-130 1,350x1,140x1,430 1000
CFB-60-56 0.6Lx7室/槽x8槽(脱着式) 5.5 0-300 1,290x1,140x1,380 1500
CFB-80 20Lx4槽 5.5 0-130 1,630x1,340x1,530 1500
CFB-120 30Lx4槽 7.5 0-130 1,630x1,340x1,530 2000
CFB-160 40Lx4槽 11 0-130 1,680x1,720x1,750 2500
CFB-200 50Lx4槽 11 0-120 1,680x1,720x1,750 3000

脱着式胴開きポット

間仕切りすることにより部品同士の打痕が皆無で仕上がりが均一です。

CFB-4V型3室

CFB-30型2室

CFB-60-56型7室

室数はご相談ください。
